Pallet Stillage Box
This Pallet Stillage Box is perfect for all commercial businesses looking for an easier way to store items, it provides businesses with security and easy storage for their products.

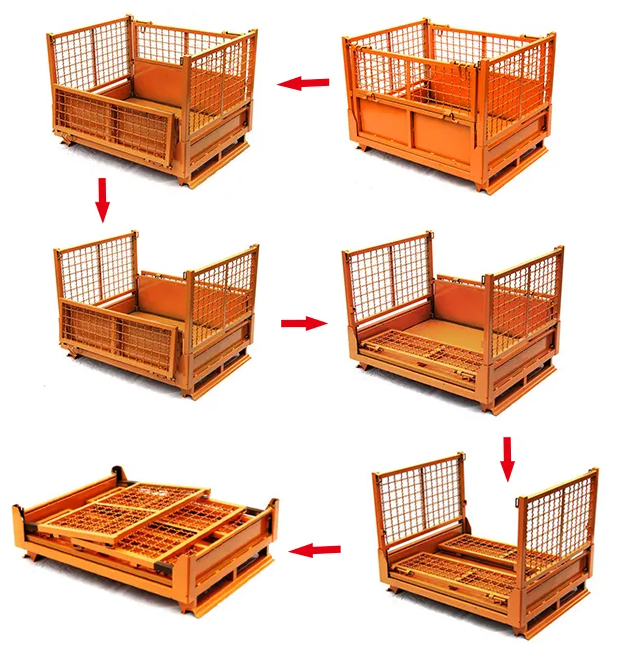

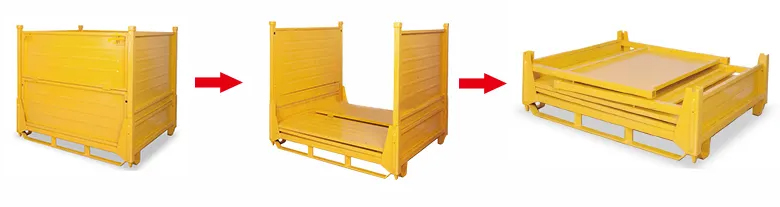

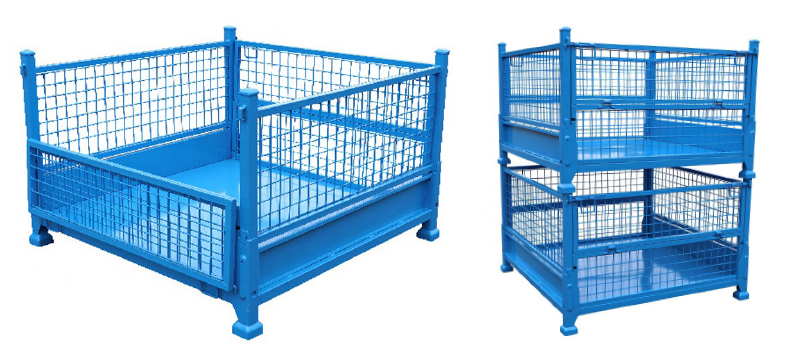

Stillage gitterboxes are heavy duty, collapsible, foldable and stackable containers that make packing, moving and storing items simple.
The powder coating surfice treatment make it with a long service life.
Metal Pallet Box · Warehouse Storage Rack · Made In China
We can offer hundres of different specifications for your option,
here are some standard specifications for your reference.
—
| Item No. | Outside Size | Innder size | Mesh Size | Wire size | Net.Wt | Loading Capacity | Stack High |

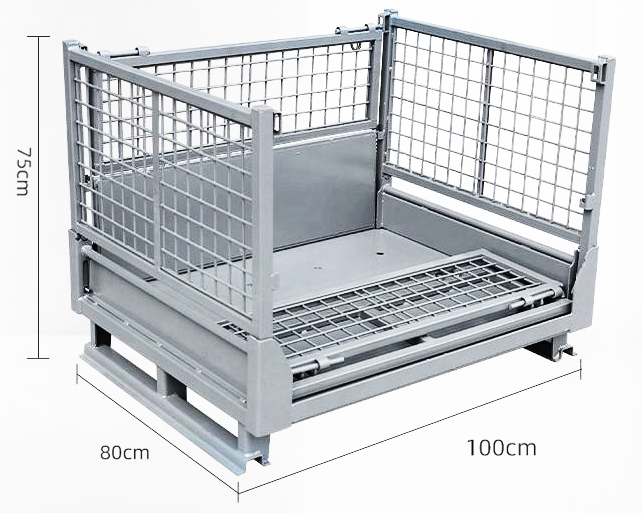

| T1008L | 100*80*75cm | 91*73*57cm | 50*50mm | 5.8mm | 67kgs | 1200kgs | 4 |
| T1008S | 100*80*75cm | 91*73*57cm | 25*25mm | 5.8mm | 75kgs | 1200kgs | 4 |
| T1210L | 120*100*75cm | 111*93*55cm | 50*50mm | 5.8mm | 97kgs | 1200kgs | 4 |
Metal Pallet Box · Warehouse Storage Rack · Made In China
Different applications have different requirements on the size,
loading capacity, stackable height etc.
So we always offer ODM serive for our customers,
OEM is welcom!
—
| Customize | For your options |
| Size of Length/ Width/Heigth | From 50-200CM |
| Loading capacity | From 300-2000KGS |
| Wire diameter | From 3.0-8.0mm |
| Mesh Size | 25*25mm 50*50mm 50*100mm |
| Finish treatment | Powder Coated, Electro-Zinc Plated and Hot-Dipped Galvanized. |
| Color | As request |
| Structure | As request |
Metal Pallet Box · Warehouse Storage Rack · Made In China

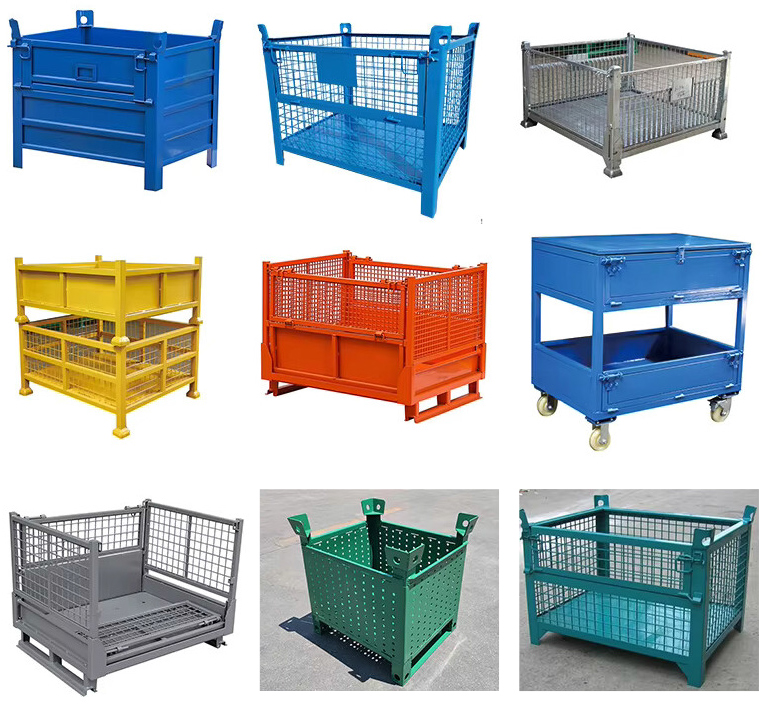

Some of our designs for your option
—
Metal Pallet Box · Warehouse Storage Rack · Made In China
| ExternalSize(mm) L*W*H | 800*600*640 | 1000*800*840 | 1200*1000*890 | 1200*800*840 | 1200*800*890 |
| Inner Size(mm)L*W*H | 750*570*500 | 950*770*700 | 1150*970*750 | 1150*770*700 | 1150*770*750 |
| Wire Diameter(mm) | 5/ 6 | 5/ 6/ 6.4 | 5/ 6/ 6.4 | 6 | 6 |
| Mesh Gauge(mm) | 50*50/50*100 | 50*50/50*100 | 50*50/50*100 | 50*100 | 50*50 |
| Maximum Static load | 500-700 kgs | 800-1200 kgs | 500-2000 kgs | 600kgs | 1000kgs |
| Feet height(mm) | 100 | 100 | 100 | 100 | 100 |
| Surface treatment | zinc/ powder | zinc/ powder | zinc/ powder | zinc/ powder | zinc/ powder |
Metal Pallet Box · Warehouse Storage Rack · Made In China
CASE
—
Metal Pallet Box · Warehouse Storage Rack · Made In China
FACTORY SCENE
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Steel Pallet · ASRS · Made In China
FACTORY SCENE
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Steel Pallet · ASRS · Made In China
